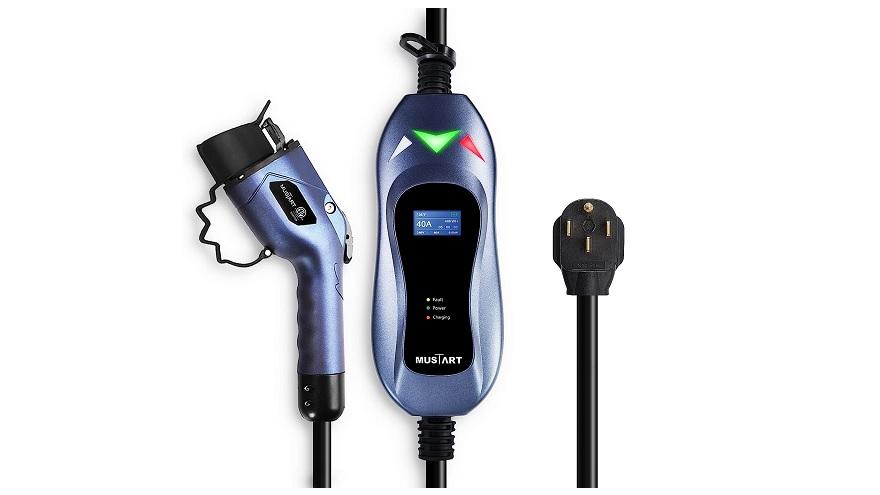

MUSTART Level 2 EV charger review


Does MUSTART Level 2 EV charger have any app? The EVSE is compatible with all plug-in electric vehicles, including the Nissan LEAF, BMW i series, Chevy Volt, Chevy Bolt, Fiat 500e, Ford C-Max Energi, Ford Focus Electric, Ford Fusion Energi, etc. It works with the majority of electric automobiles. You can increase your range by 30 to 60 miles for every hour of charging, depending on your car’s capacity and the output current of the Level 2 charger. Know more in MUSTART Level 2 EV charger review.

We independently review everything we recommend. When you buy through our links, we may earn a commission. Lean how we earn commission

Pros & Cons


  • Good cable length
  • A range of power ratings
  • Weatherproof


  • Heavy weight

Specs – MUSTART Level 2 EV charger

  • AC Input Voltage 240V
  • AC Charging Current 40A Max
  • Max Power Output 9.6 KW
  • Applicable Plug NEMA 14-50
  • Circuit Breaker 50A, or above
  • Connector Type SAE J1772
  • Charging Cable Length 25-Feet
  • Input Wiring Scheme 3*8AWG Wire – L1, L2, PE
  • Protection Overcurrent, overvoltage, undervoltage, overheat, leakage protection
  • Operating Temperature -22°F-122°F / -30°C-50°C
  • Certification ETL, UL-2594, FCC
  • Guaranteed 2 years
  • Weight ‎13 pounds
  • Dimensions ‎15.59 x 13.62 x 6.14 inches


For $359, Amazon sold the MUSTART L2 40A Charging cord and control box.

MUSTART Level 2 EV charger review


exceptional build quality. Brass, rubber end caps for the string outside, and maybe plated exposed screws for corrosion resistance. Nice extras like hooks for hanging things.

This portable power supply has been crafted with dependability and longevity. You may safely charge your vehicle with it because it is lightning-proof and has leakage, overvoltage, overheat, and overcurrent protection.

In addition to LED indicators, it contains a digital display with numerous different data points. It is rated IP65 for the control box and has an IP67 waterproof rating for the EV connector.

Cable length

A total of 25 feet of charging wire in a small package allows for flexible installation and use. Simply plug the charger into a 220 Volt or 240 Volt NEMA14-50 outlet.


I appreciate the display’s ability to track charging time and energy while also showing the voltage, current, and power levels. Since the counters reset when the device is unplugged, they might not be very helpful for long-term data. Overall, the purchase was quite worthwhile.


The NEMA 6-50 plug is seen here. The common NEMA 14-50 socket is not made to be frequently plugged in and unplugged. It has protection against overcurrent, overvoltage, undervoltage, overheating, and leakage.

MUSTART Level 2 EV charger Charging

A wide range of charging power is supported by SAE J1772 Level 2 charging, ranging from 2.2 kW at slightly under 10 Amps to 19.2 kW at 80 Amps. With the correct rated outlets or hardwired, 3-wire and gauge wiring, as well as your home’s Load Center circuit breaker(s), an L2 can be installed inside your house on the same circuit as an electric dryer or oven.

Charging speed

Its screen is quite helpful since it displays the amount of time it took to charge, how much Kwh was used during that session, the temperature, and the current amps being used. Furthermore, despite the fact that it states 25 amp charging, the actual charging rate is closer to 24 amps, which is safe for a 30 amp outlet. The may be charged very quickly—possibly 1.5 times faster than a 16amp charger.

MUSTART Level 2 EV charger Setup

Almost all of the mounting components were included in the kit; the cord coil holder’s instructions and screws were missing. Screw mounts for dry walls are among them. I had no trouble mounting everything to a single stud. Although the connection to the vehicle is a little bit tight and sticks a little bit when connecting and separating, I personally prefer a firm connection than a loose one.

MUSTART Level 2 EV charger review alternative

ChargePoint Home Flex EV charger

It’s hardly unexpected if the ChargePoint moniker seems familiar. Through its user-friendly software, ChargePoint runs a large national network of publicly accessible charging stations that are both free and paid. Over the next ten years, the business plans to spend $1 billion on expanding charging stations across the US. It therefore comes as no surprise that the business has used that brand familiarity to create a home charging device.

Depending on the capabilities of your home circuit, the HomeFlex charger can be programmed to use a charging current between 16 amps and 50 amps and is available in two versions for use with NEMA 6-50 or NEMA 14-50 outlets. For the majority of installations in homes, the 23-foot cable should be sufficient.

You can keep track of all your charging sessions, whether at home and when traveling, using the ChargePoint app. You may program schedules to charge your home devices at the lowest possible rates. Alexa voice control works with the app.
